BARETONE AUDIO WIRELESS MICROPHONE | OMEGA 1

Main Technical

- Transmitter Technical Specifications

- Frequency Range: 677.7 - 696.3MHz

- Number of Channels: 16 (conservative value) Each time pairing, the ID code changes randomly, within the frequency range set by the manufacturer

- Oscillator mode: DSP chip frequency lock

- Frequency Stability: ±10ppm

- Rf Power: 10dBmThe Frequency: 40-18000Hz

- Distortion Degree: ≤0.5%

- Battery Specifications: 3,7V/18650R 1200mAh

- Continuation time: 4-8 hours (depending on battery type and capacity)

Receiver Technical

- Frequency Range: 677.7-696.3MHz

- Number of Channels: 16 (conservative value) Each time pairing, the ID code changes randomly, within the frequency range set by the manufacturer

- Oscillator Mode: DSP chip frequency lock

- Rate Stability: +10ppm

- Receiving Sensitivity: -95 ~ -71dBm

- The tone frequency ranges from 40 to 18000Hz

- Distortion Degree: ≤0.5%

- Signal to Noise Ratio: ≥90dB

- Audio Output: 300mv(Max)

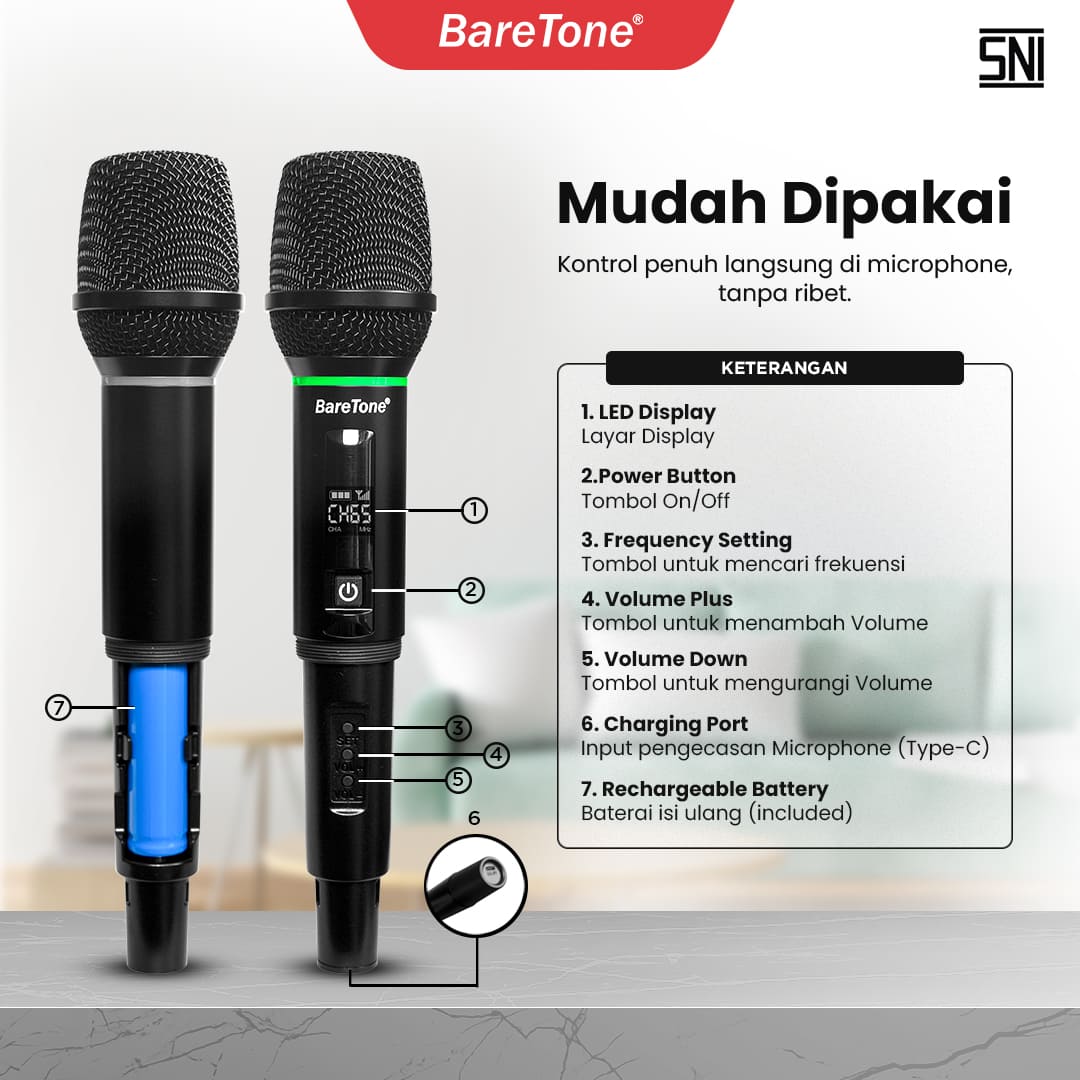

Handheld Transmitter

- Frequency Range: 2412-2484MHz

- Frequency Stability: 10PPM (-10 - 50°C)

- Rf Power: ≥10mW

- Frequency Response: 40Hz-18KHz

- Distortion Degree: ≤0.5%

- Modulation Mode: DSP

- Bandwidth: 950KHz

- Operating Voltage: 3.7V/5V

- Working Current: 80mA

Receiving Host

- Frequency Range: 2412-2484MHz

- Frequency Stability: 10PPM (-10-50°C)

- Sensitivity: -92 dBM - SNR: S/N≥90DB

- Frequency Response: 40Hz-18KHz

- Distortion Degree: ≤0.5%

- Audio Output: 350mv(Max)

- Operating Voltage: 3.7V/5V

- Working Current: 70mA
