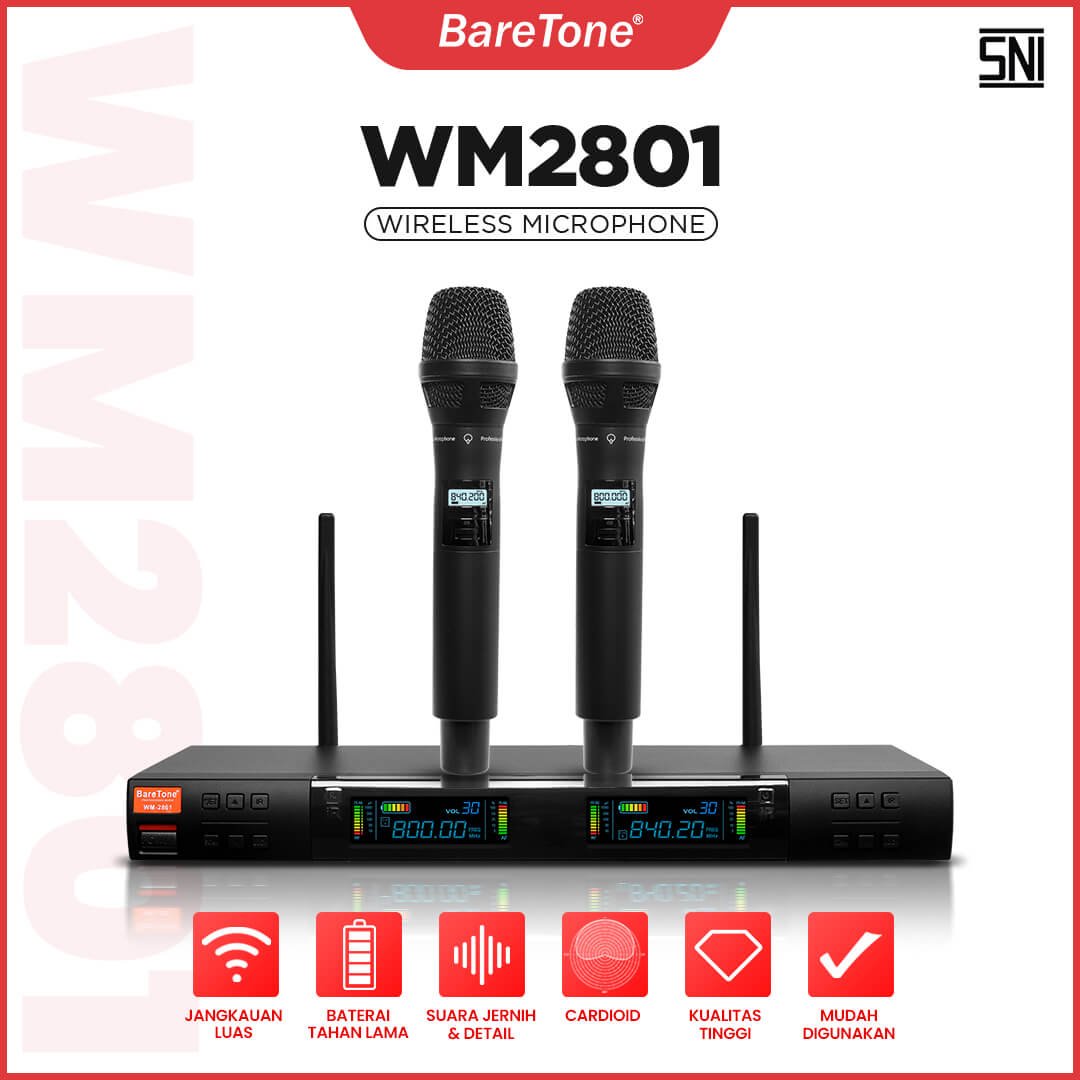

BARETONE AUDIO WIRELESS MICROPHONE | WM2801

COMPREHENSIVE CHARACTERISTICS:

- Carrier frequency range: 640MHz-690MHz

- Bandwidth: 60MHz

- Modulation method: FM frequency modulation

- Maximum frequency deviation: ±45KHz

- Frequency Response: 100Hz-300Hz

- Signal-to-noise ratio (S/N): >50dB

- Distortion (1kDz): <5%

- Working temperature: -10°C~55°C

- Working distance: 100 meters

- Power consumption: 8W

- Static power: 3W

RECEIVER

- Oscillation Mode: PLL (Digital Synthesizer)

- Spurious suppression: ≥50dB

- Image rejection: ≥50dB

- Sensitivity: 5dBuV

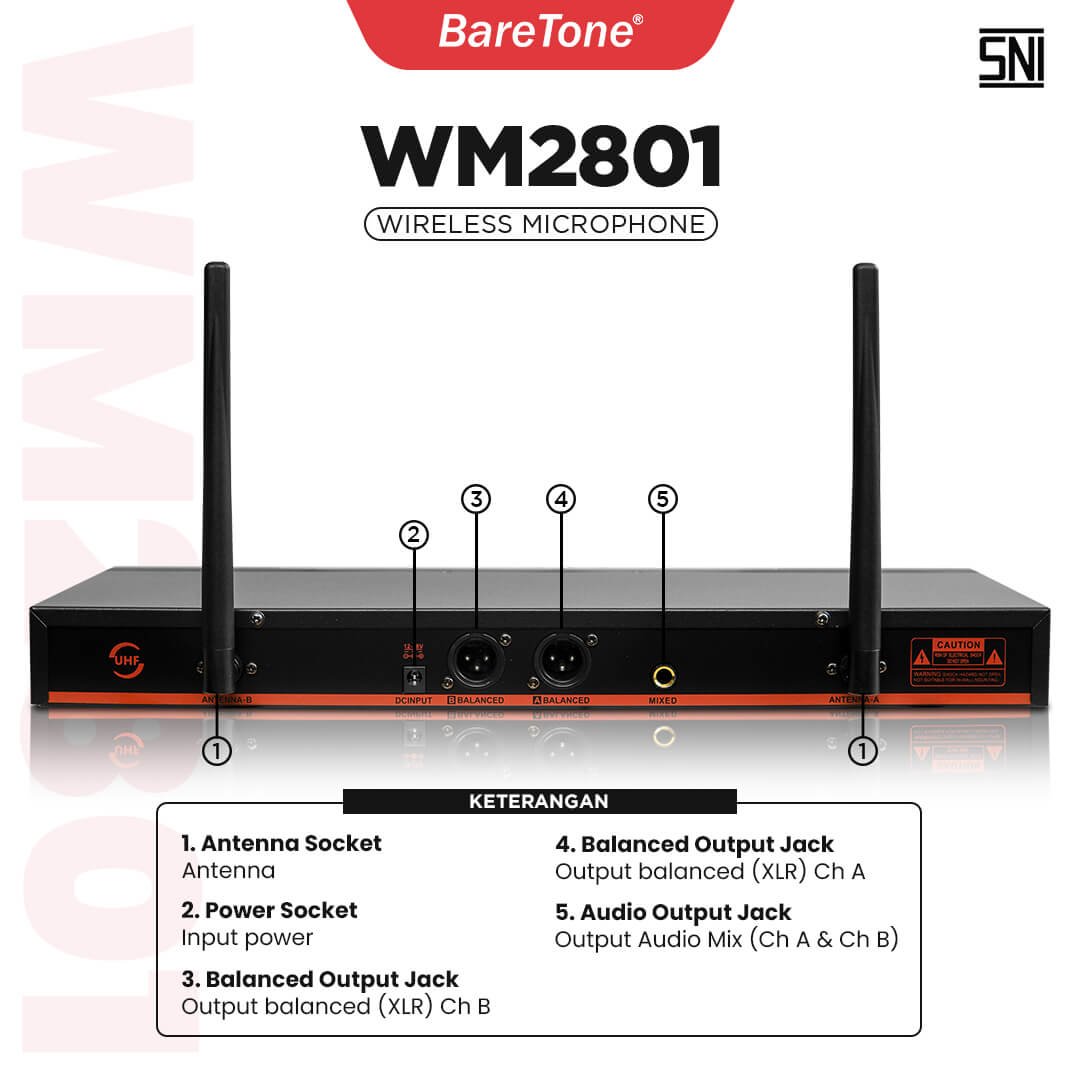

- Audio output level:

- Balanced output (XLR output jack): 250mV/600

- Unbalanced output (1/4" output jack): 400mV/3K

- Working voltage: DC 12-18V

- Working current: ≤350mA

- Chassis size (WxDxH): 420 x 155x 42mm

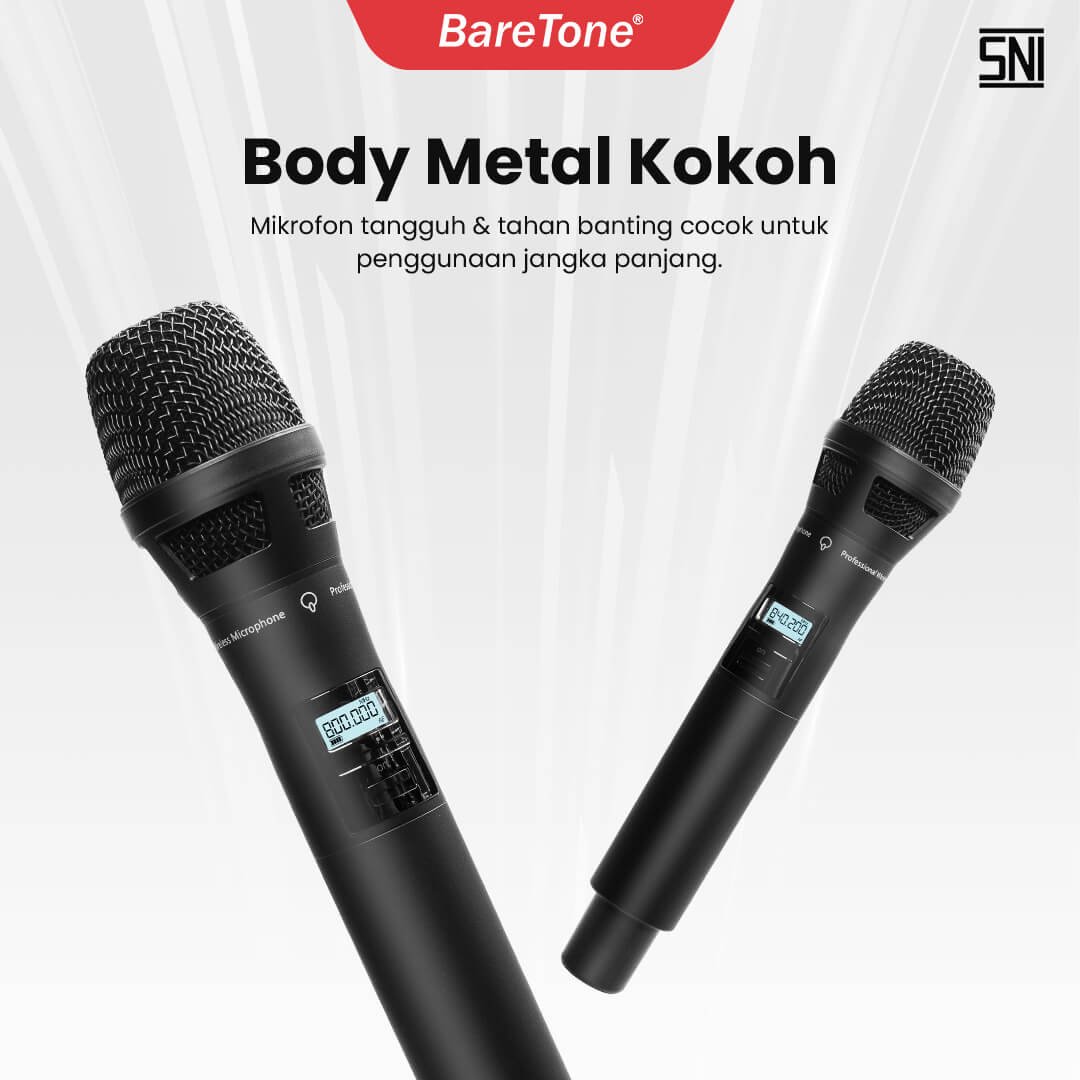

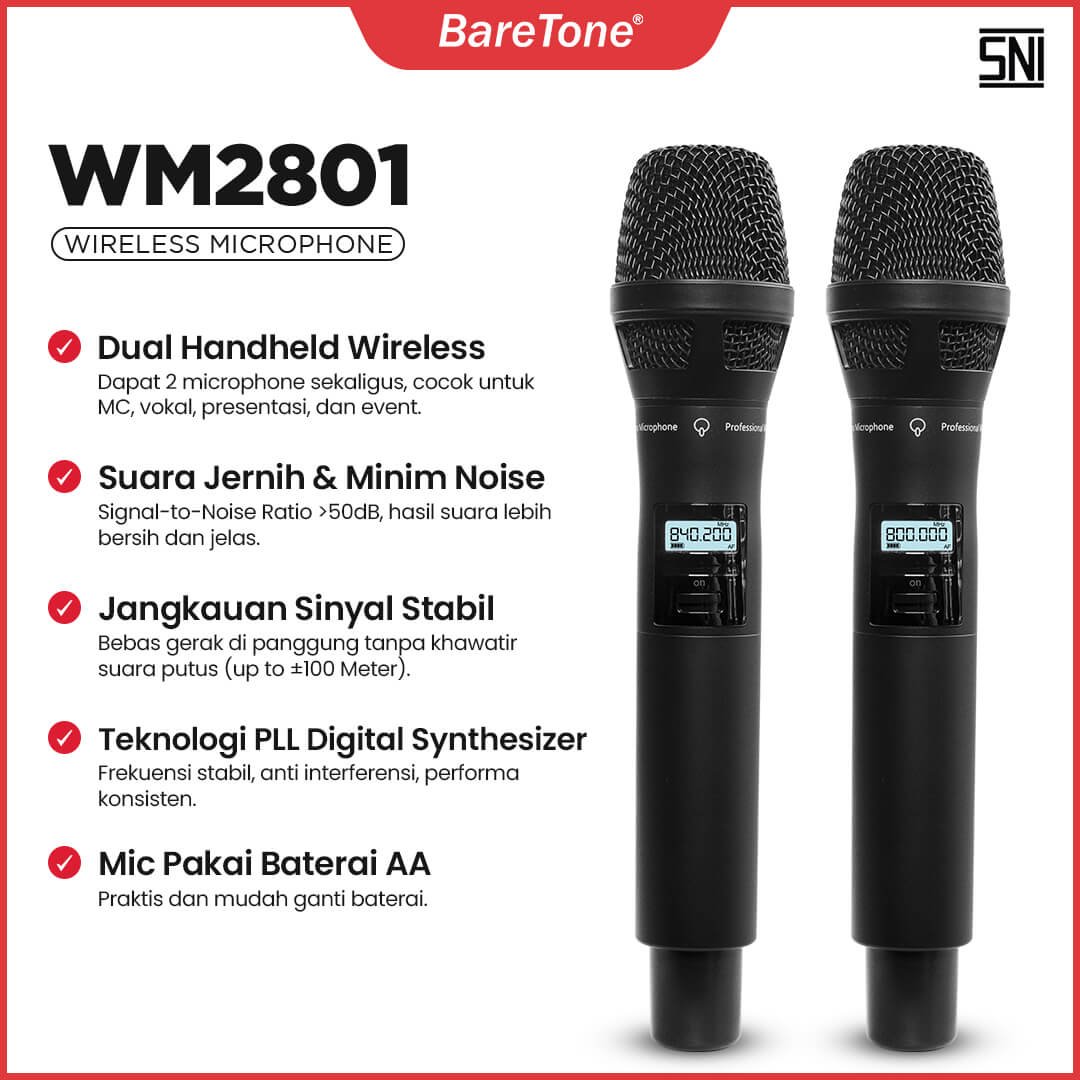

HANDHELD TRANSMITTER

- RF power output: 30mW max

- Oscillation Mode: PLL (Digital Synthesizer)

- Transmit frequency stability: <30ppm

- Dynamic range: 250dB(A)

- Frequency Response: 100Hz-300Hz

- Maximum input sound pressure: 130 dB SPL

- Radiation pickup: moving coil

- Power supply: 2 AA size alkaline batteries

Kelengkapan:

- Microphone Wireless (2 pcs)

- Receiver (1 pcs)

- Braket Siku (2 pcs)

- Kabel Jack 6.5mm (1 pcs)

- Kabel Adaptor (1 pcs)

- Buku Manual (1 pcs)
