BARETONE AUDIO WIRELESS MICROPHONE | WM3801

 Spesifikasi :

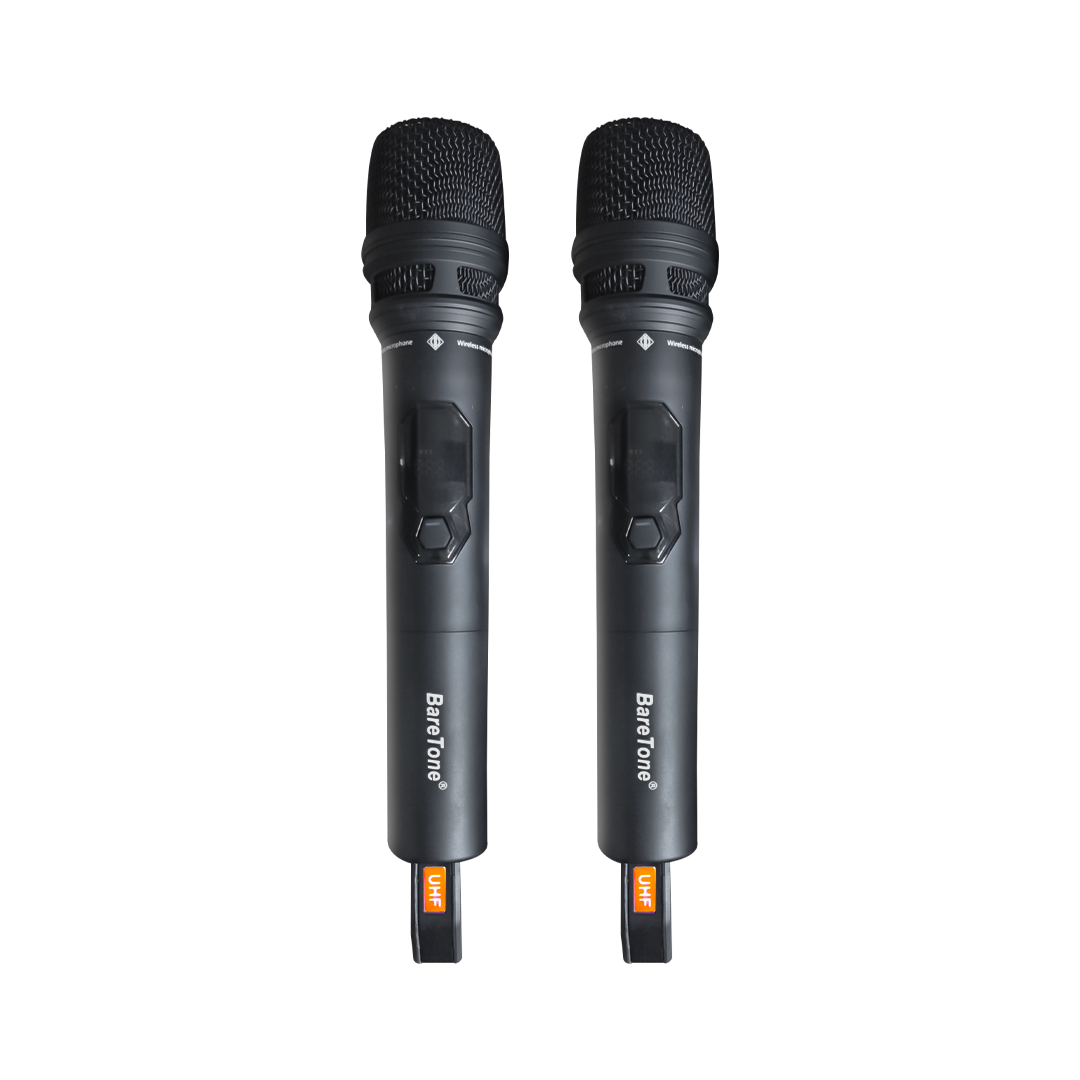

 Transmitter
 - Frequency: UHF 640 – 690MHz
 - Modulation: FM
 - Channel: 2 * 200
 - Interval: 250KHz
 - Stability: ±0.005%
 - Response: 30Hz – 18kHz (+/-3dB)
 - SN Ration: <105dB
 - THD: ≤0.5%
 - Range: 100m (without obstacle)
 - Intermediate: 100MHz, 10.7MHz
 - Antenna: TNC/50Ω
 - Sensitivity: -95dB
 - Max Output: ±DC12 – 15V
 - Current: >350mA
 - Squelch Level: 0 – 40dB(1.5V)5KΩ

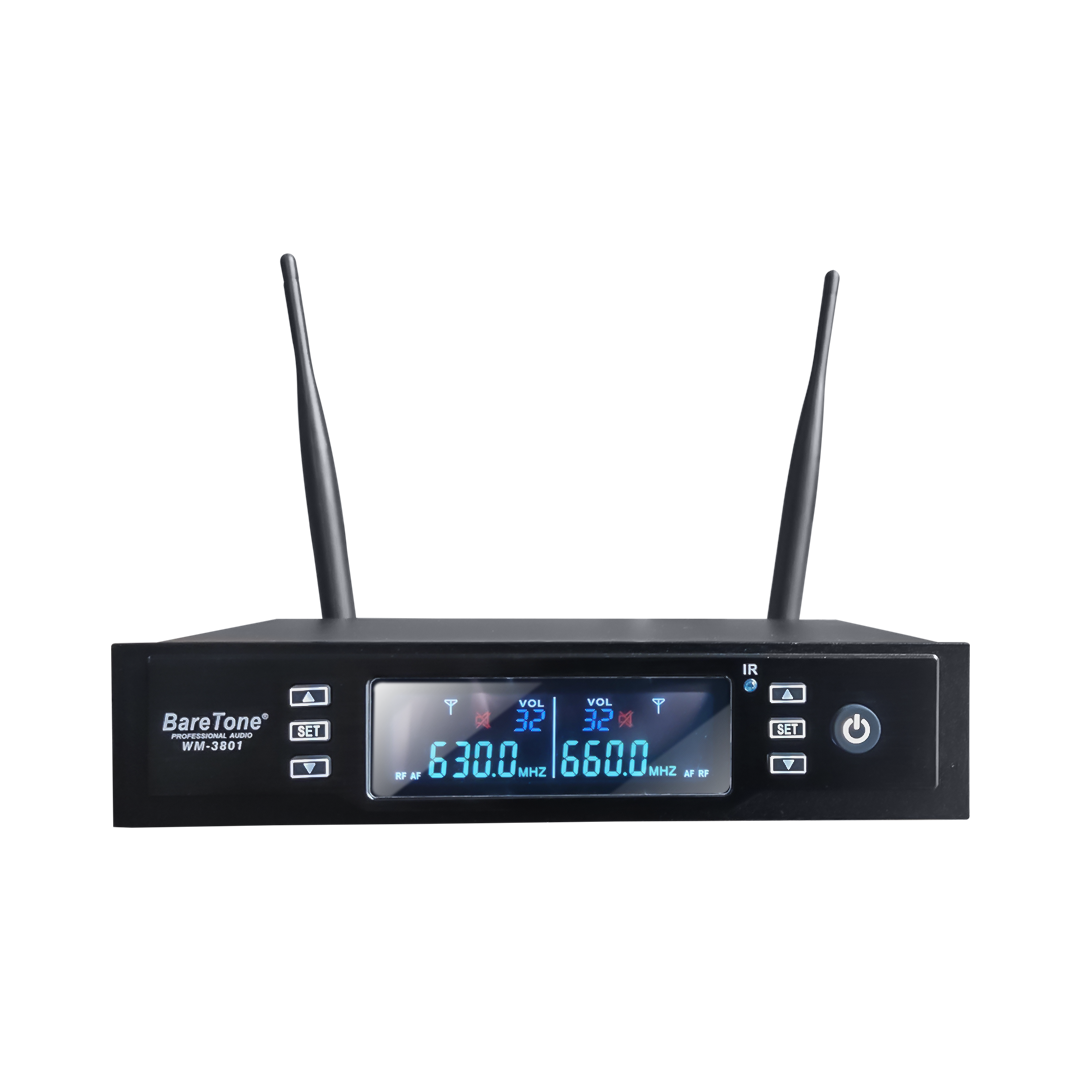

 Receiver
 - Type: Dynamic
 - Antenna: Built-in Helical Antenna
 - High Power: 10dB
 - Low Power: 5dB
 - RF Squelch: 60dB
 - Power: 18650/3.7V
 - Duration: About 6 Hours
